Bay / Duomo Collection

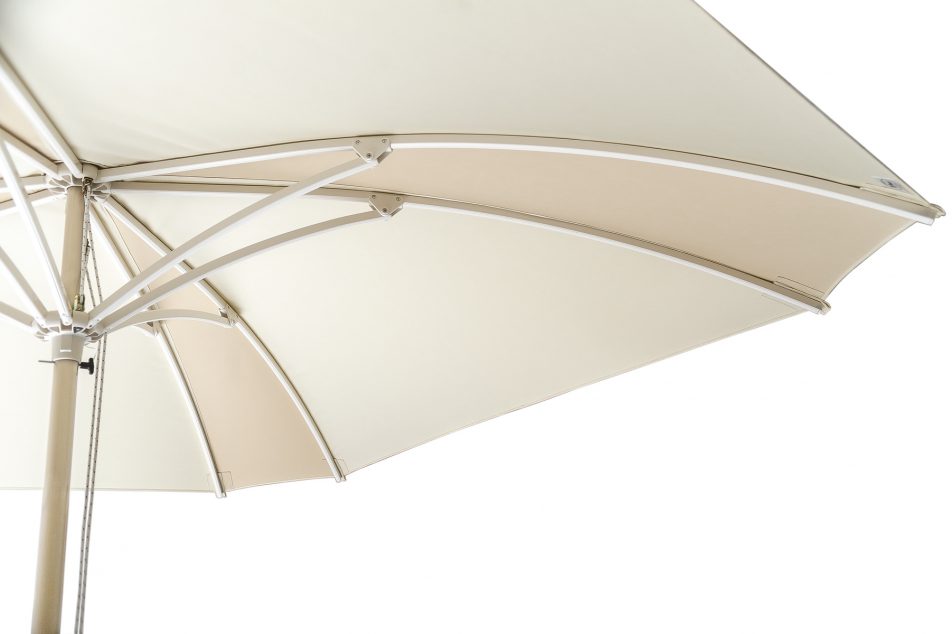

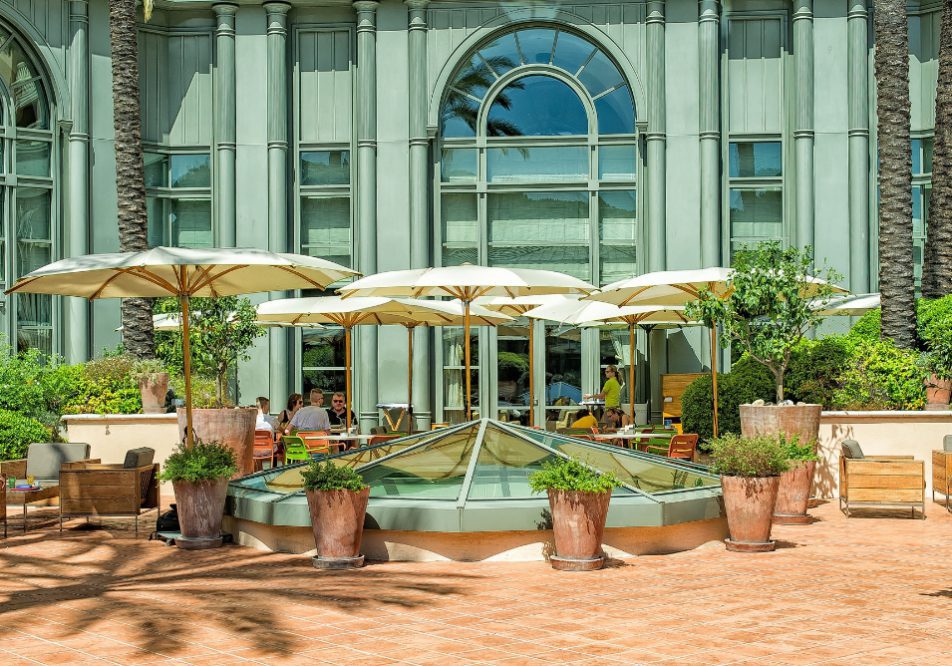

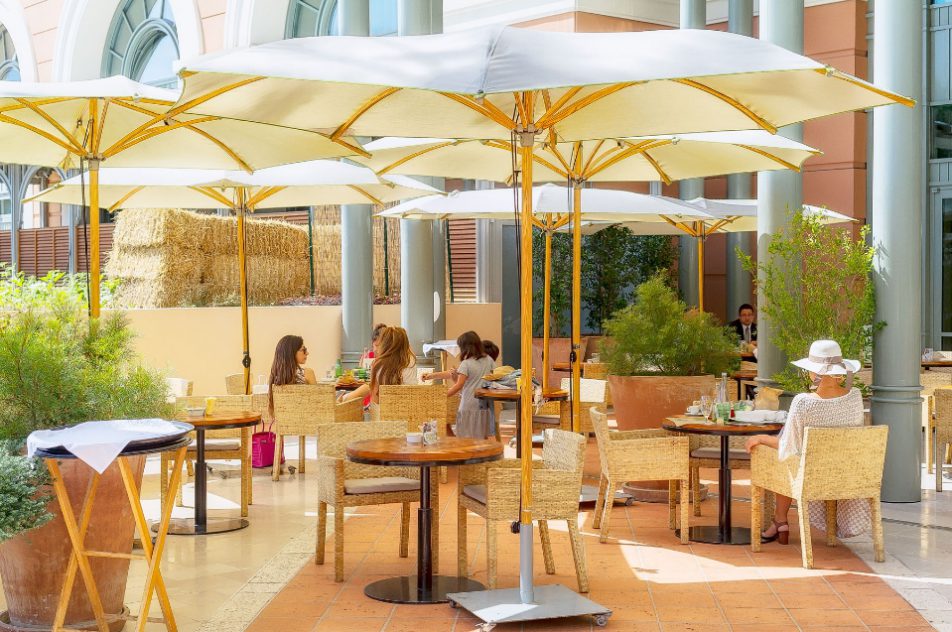

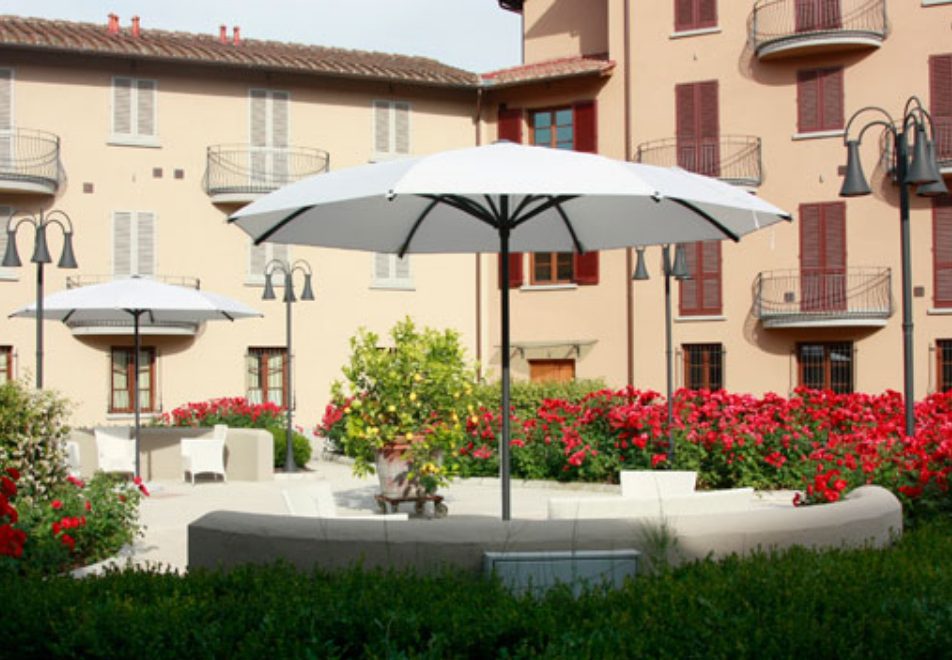

The Bay’s light and elegant bend gives it a modern look that enhances any space. Small but efficient, the Bay impresses with its incredible versatility and design. It features a pulley and rope opening and closing system for ease of use. There is also an option for a more dome-shaped canopy, creating the appearance of a true cupola. The Bay is best suited for patio, restaurant, and café seating areas and any small space where shade is required.
Crafted for Perfection
Crafted by master engineers, artisans and top-of-the-line manufacturers, Poggesi umbrellas are designed with 100% acrylic weather-resistant awning grade canvas, aluminum powder coated structure, and stainless-steel cables and bolts to ensure a lifetime of durability and timeless beauty.
Features And Options

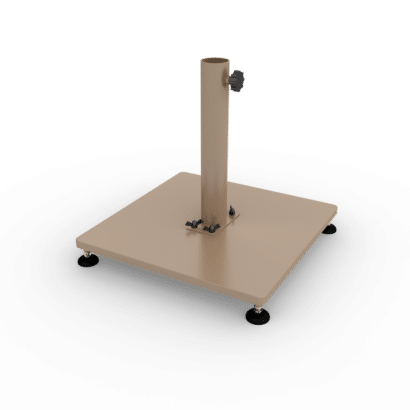

AB5050-2 Galvanized Steel Base 20"x20" (50x50cm) (Customize with rollers/wheels)
ACOP70 Cover for weights and base 27"x27"x8.25" (70x70x21cm), (5 kg., 11 lbs.)
SCF24D Stainless Steel Concrete Fileld Base Ø 24" (Ø 60 cm) (60 kg., 130 lbs.) Base with side rollers
GSBCP-524D-65 Round Galvanized Steel Plates Ø 24"x0.5" (61x1.27cm) , Total Weight (29 kg., 65 lbs.)

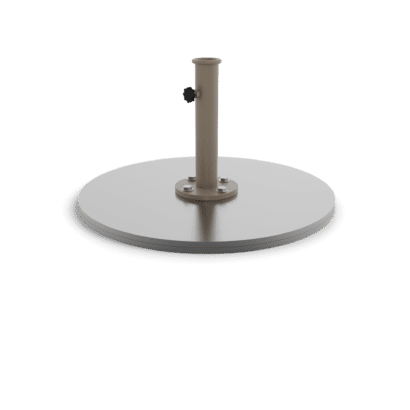

GSBCP-524D-130 Stacked Round Galvanized Steel Plates Ø 24"x1" (61x2.5cm) , Total Weight (60 kg., 130 lbs.)
GSBCP-530D-100 Round Galvanized Steel Plates Ø 30"x0.5" (76x1.27cm) , Total Weight ( 45 kg., 100 lbs.)

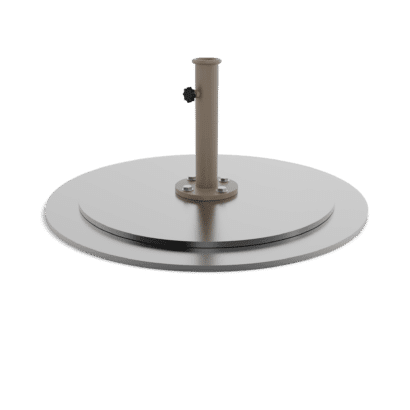

GSBCP-530D-165 Stacked Round Galvanized Steel Plates Ø 30"+24"x1" (76+61x2.5cm) Stacked , Total Weight (75 kg., 165 lbs.)

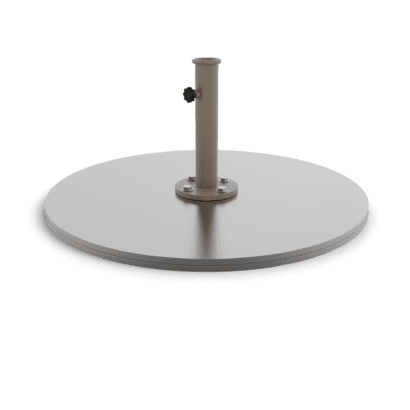

GSBCP-530D-200 Stacked Round Galvanized Steel Plates Ø 30"x1" (76x2.5cm) Stacked , Total Weight (90 kg., 200 lbs.)
GSBCP-530D-265 Stacked Round Galvanized Steel Plates Ø 2x30"+24"x1.5" (2x76+61x3.8cm) Stacked , Total Weight (120 kg., 265 lbs.)
COMBASE70 Iron Base 27"x27"x8" (70x70x20cm), ready for 4 concrete weights. Total 352 lbs (160kg)
ACOP90 Cover for weights and base 35"x35"x8.25" (90x90x21cm), (8 kg., 17.6 lbs.)
ACF24D Aluminum Base Filled With Concrete 24"Ø (60cm), (60 kg., 130 lbs.) Base with side rollers
GSBCPM2424 Galvanized Steel Base 24”x24"(61x61cm) Total per plate 100lbs (45kg) Stackable to achieve weight
GSBCPM3030 Galvanized Steel Base 30”x30"(76x76cm) Total per plate 100lbs (45kg) Stackable to achieve weight
Dolly L 16' W 8.5' H 6"

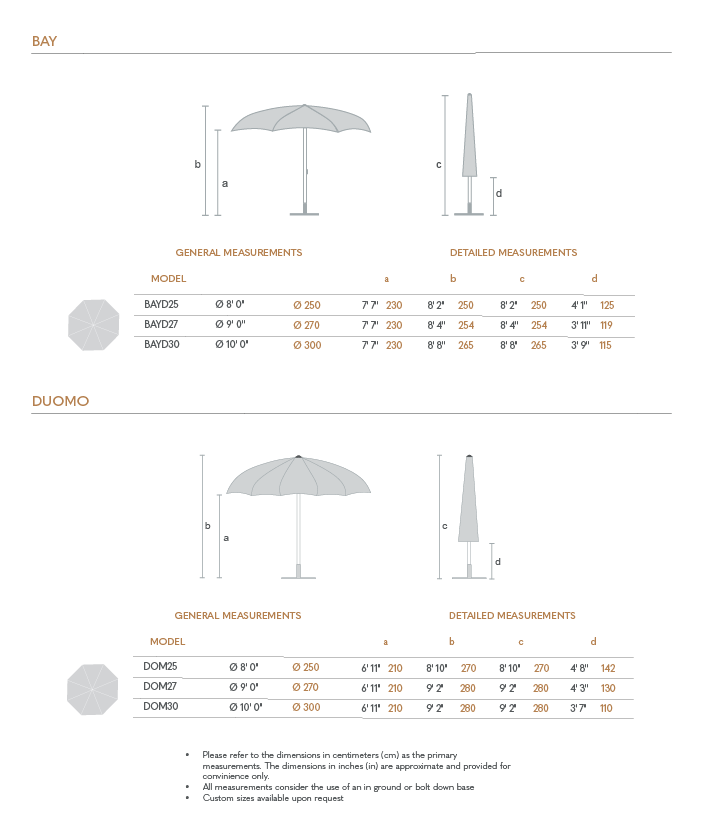

| Category | Centerpost Umbrella |
|---|---|
| Shaft Size | 1.97″ (50mm) diameter |
| Shaft Aluminum Thickness | 0.08″ (2mm) |
| Shaft Material | Aluminum |
| Number of Ribs | 8 Ribs |
| Rib Measurements | 1.38″ x 0.79″ (35mm x 20mm) |
| Rib Aluminum Thickness | 0.08″ (2mm) |
| Rib Material | Aluminum |
| Rib Joints | Nylon Triangle with Rivets |
| Aluminum Finish | Ribs and Shaft Powder Coated |
| Canopy | Yarn Dyed Marine Grade Acrylic 320gsm |
|---|---|
| Umbrella Rotation | 360° |
| Weight of Structure | 35lbs (18 kg) |
| Opening/Closing | Rope and Double Pulley |
| Telescopic | No |
| Nuts, Bolts, Screws | Stainless Steel |
| Vent | Soft |
| Umbrella Cover | Standard Cover Included |

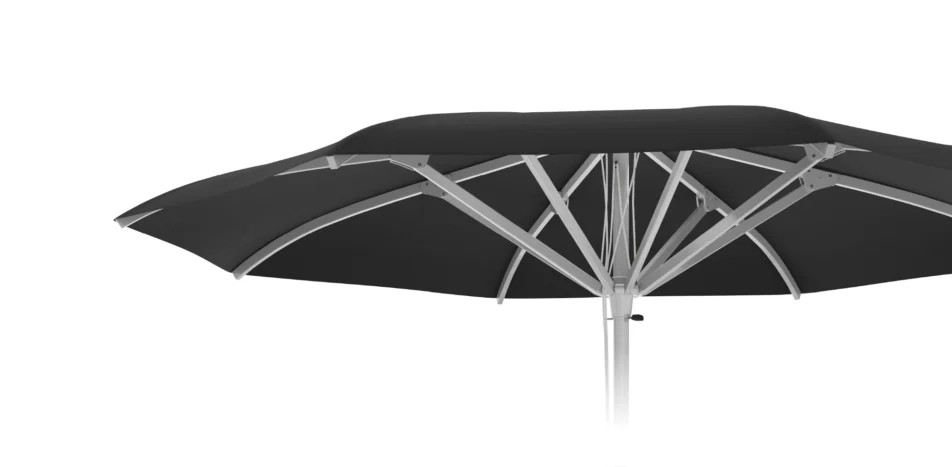

| Options | Dome Shape (Duomo) |
Easy to Use Technology.
With a variety of base and stand options, our patented umbrella technology makes it effortless to open and close your weather-resistant umbrellas with a mere touch and a push, leaving the rest to a complex series of springs.
Brilliant Colors
Make Poggesi your own with a variety of color options from Sunbrella®. The world’s number one outdoor performance fabric, is water-repellent and offers unsurpassed durability, stain, weather and fade resistance. The canvas is lightweight and has a flat, consistent weave, providing up to 98% UV protection. It is easy-care and withstands the elements beautifully.
Safety Standards
Ombrellificio Poggesi certified the quality of its internal production process by obtaining the TÜV trademark, one of the most important European quality organizations, in order to provide its clients with further proof of its great attention to product quality and safety at every level of the production process. The TÜV quality trademark certifies the safety and rule-compliance to provide a safe setup for your residence or business.
