Cantilever Umbrellas

Joint Collection

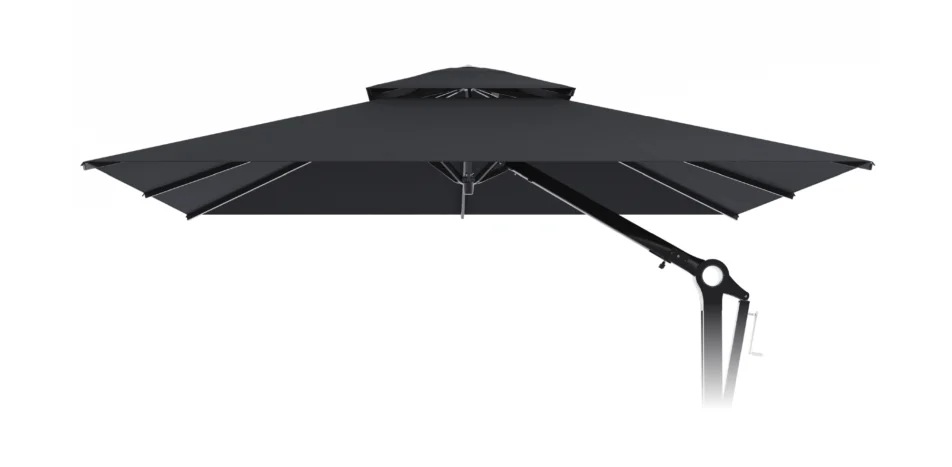

The Joint Collection is designed for those who appreciate contemporary minimalism and avant-garde aesthetics. This umbrella features a sturdy aluminum frame and a handle crank system for effortless tilt and height adjustment. Its innovative design allows it to be opened and closed without moving the furniture below. Ideal for large seating areas, restaurants, and modern outdoor spaces, the Joint combines exceptional stability with cutting-edge style, providing both practical performance and visual appeal.

Crafted for Perfection

Crafted by master engineers, artisans and top-of-the-line manufacturers, Poggesi umbrellas are designed with 100% acrylic weather-resistant awning grade canvas, aluminum powder coated structure, and stainless-steel cables and bolts to ensure a lifetime of durability and timeless beauty.

Features and Options

Black
Bronze
Chrome
Cream
Graphite
Platinum
White
aquamarine Aquamarine
aruba Aruba
aspen Aspen
basil Basil
beige Beige
black Black
black-cherry Black Cherry
burgundy Burgundy
buttercup Buttercup
cadet-grey Cadet Grey
capri Capri
captain-navy Captain Navy
charcoal-grey Charcoal Grey
tweed-charcoal Charcoal Tweed
cocoa Cocoa
concord Concord
crest-ash Crest Ash
crest-birch Crest Birch
deep-sea Deep Sea
tweed-dubonnet Dubonnet Tweed
Ash Gessato

IGBASECL Iron base tube for in-ground insertion Ø 2.6" (Ø 6.8cm) (6 kg., 13 lbs.)

BDBASECL Iron base for bolt down 10"x10"x0.31" (25x25x0.8cm) (8 kg., 17lbs.)

WMOUCL Custom Iron Wall mount base avaliable

Center Post

COMBASE70 Iron Base 27"x27"x8" (70x70x20cm), ready for 4 concrete weights. Total 352 lbs (160kg)

Center Post

COMBASE90 Iron Base 35"x35"x8" (90x90x20cm), ready for 4 concrete weights Total 579 lbs (263kg)

ACOP70 Cover for weights and base 27"x27"x8.25" (70x70x21cm), (5 kg., 11 lbs.)

ACOP90 Cover for weights and base 35"x35"x8.25" (90x90x21cm), (8 kg., 17.6 lbs.)

Center Post

AB9090 +ACEM49/ACEM47 Iron Base 35"x35"x8" (90x90x20cm), + 8 concrete weights (Total 398kg., 876lbs.)

GSBCPM3636 Galvanized Steel Base 36”x36"(91x91cm) Total per plate 100lbs (45kg) Stackable to achieve weight

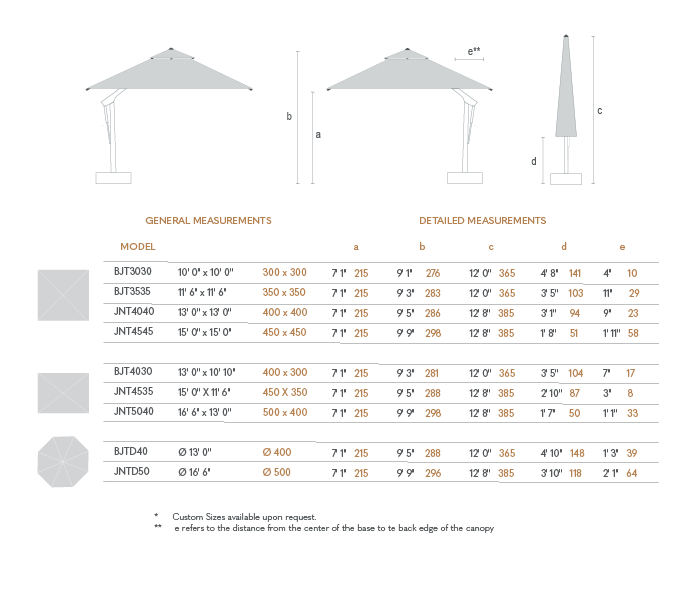

Category Cantilever Umbrella
Shaft Size 4.33″ x 4.33″ (110 mm x 110 mm)
Shaft Aluminum Thickness 0.08″ (2mm)
Shaft Material Aluminum
Number of Ribs 8 Ribs
Rib Measurements 1.38″ x 0.79″ (35mm x 20mm)
Rib Aluminum Thickness 0.08″ (2mm)
Rib Material Aluminum
Rib Joints Nylon Triangle with Rivets
Aluminum Finish Ribs and Shaft Powder Coated
Canopy Yarn Dyed Marine Grade Acrylic 320gsm
Adjustable Height Yes
Canopy Tilt Yes
Umbrella Rotation 360°
Weight of Structure Approx 121 lbs (55 kg)
Opening/Closing Crank
Mechanism Details Two Winches with Cable and Endless Screw
Telescopic Yes
Nuts, Bolts, Screws Stainless Steel
Vent Raised
Umbrella Cover Standard Cover Included
Fabrics | Colors

Brilliant Colors

Make Poggesi your own with a variety of color options from Sunbrella®. The world’s number one outdoor performance fabric, is water-repellent and offers unsurpassed durability, stain, weather and fade resistance. The canvas is lightweight and has a flat, consistent weave, providing up to 98% UV protection. It is easy-care and withstands the elements beautifully.

Safety Standards

Ombrellificio Poggesi certified the quality of its internal production process by obtaining the TÜV trademark, one of the most important European quality organizations, in order to provide its clients with further proof of its great attention to product quality and safety at every level of the production process. The TÜV quality trademark certifies the safety and rule-compliance to provide a safe setup for your residence or business.

Make Joint Yours
